PROJECT OVERVIEW

Engineering Excellence for Modular Evaporation Skid

Impes Innovation Pvt. Ltd. successfully provided detailed engineering services for an Evaporation Skid, designed for efficient concentration and evaporation processes within a compact skid-mounted system. The project required integrated engineering to ensure that all equipment, piping, and structural elements were properly designed for safe operation, transportation, and installation.

Our scope included civil and structural design, piping engineering, and complete 3D modelling of the skid system, along with specialized engineering studies such as lifting analysis and transportation analysis. These analyses ensured that the skid assembly could be safely lifted, handled, and transported while maintaining structural integrity and equipment safety.

The project demonstrates Impes Innovation's capability in delivering engineering solutions for modular skid-mounted process systems, which are widely used for compact installations and faster project deployment.

Project Snapshot

End User

Texas Futura LLC

Location

Texas, USA

Business Segment

Oil & Gas / Process Industry – Modular Process Skid Systems

Key Services

Civil, Structural, Piping Engineering, 3D Modelling, Lifting & Transportation Analysis

KEY HIGHLIGHTS

Project Highlights & Achievements

Modular

Skid System

3D Model

Complete Skid

Analysis

Lifting & Transportation

Integrated

Multi-Discipline

OUR SCOPE

Services Provided

Civil & Structural Engineering

  • Civil Design for Skid Foundation
  • Structural Design of Skid Frame
  • Detailed Structural Fabrication Drawings

Piping Engineering

  • Piping Layout and Routing
  • Piping Detailing and Engineering
  • Integration with Skid Components

Digital Engineering & Analysis

  • Complete 3D Modelling of Skid Assembly
  • Lifting Analysis for Safe Handling
  • Transportation Analysis for Shipment
KEY FEATURES

Key Features

Integrated Engineering

Civil, structural, and piping engineering for modular skid system

Specialized Analysis

Lifting and transportation analysis for safe logistics

3D Digital Model

Complete skid modeling for fabrication and coordination

Key Achievements

  • Successful delivery of multi-disciplinary detailed engineering services
  • Development of complete 3D skid model for fabrication and engineering coordination
  • Completion of lifting and transportation analysis ensuring safe logistics
  • International project delivery for USA-based client

Engineering Challenges

  • Designing a structurally stable skid frame capable of supporting multiple equipment loads
  • Ensuring the skid structure could safely withstand lifting and transportation stresses
  • Coordinating piping, equipment, and structural elements within limited skid space
  • Developing accurate 3D models for fabrication and installation planning

Our Strategy

  • Use of integrated 3D engineering tools for accurate design coordination
  • Application of engineering analysis to validate lifting and transportation conditions
  • Close collaboration between civil, structural, and piping engineering teams
  • Focus on modular design principles for efficient fabrication and installation

Project Achievements

Successful delivery of multi-disciplinary detailed engineering services

Development of complete 3D skid model for fabrication and engineering coordination

Completion of lifting and transportation analysis ensuring safe logistics and installation

Strengthening Impes Innovation's experience in modular skid engineering and international projects

VISUAL REPRESENTATION

Project Gallery

Evaporation Skid - 3D Model Renderings & Engineering Visualizations

Evaporation Skid 3D Model
3D Skid Model

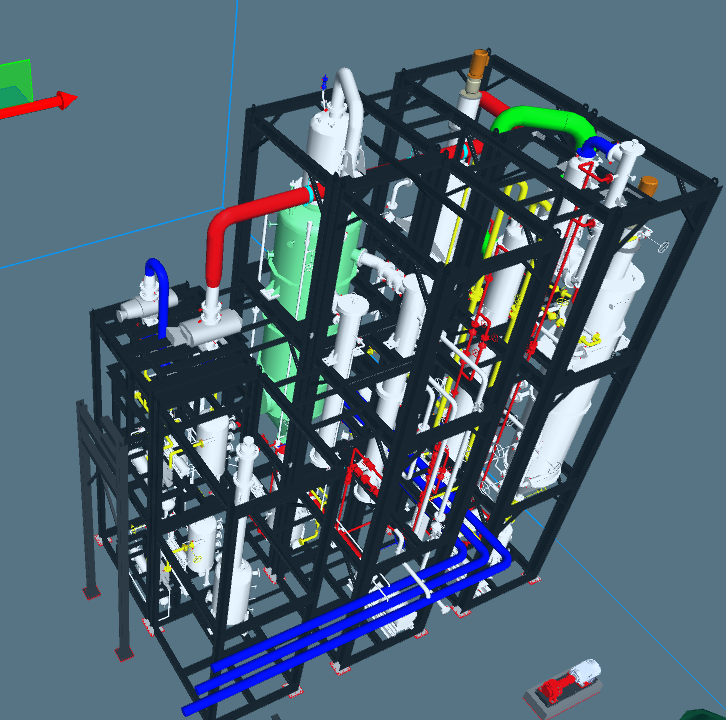

Structural Design
Structural Design

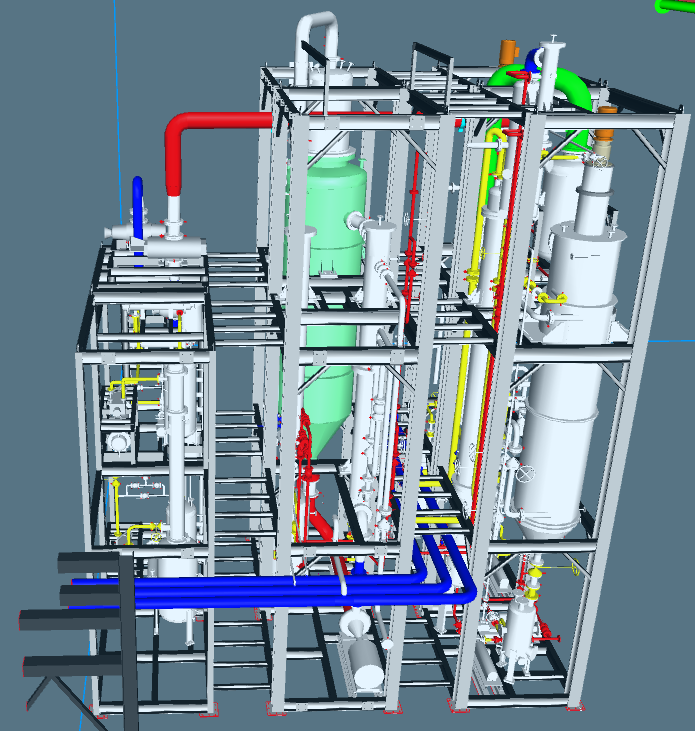

Piping Layout
Piping Layout

For detailed specifications and engineering drawings, please contact our team
