PROJECT OVERVIEW

Engineering Excellence for Failure Analysis

Impes Innovation Pvt. Ltd. successfully provided engineering support for Spiral Heat Exchangers involving reverse engineering, failure investigation, and mechanical analysis for an operating industrial facility. The assignment focused on identifying the root cause of mechanical failure and recommending technically sound and cost-effective solutions to restore reliable operation of the equipment.

Our engineering team carried out detailed mechanical evaluation and finite element analysis (FEA) to study the stress distribution, structural behavior, and possible causes of failure within the heat exchanger structure. Based on the analysis results, we proposed design modifications and improvement measures that minimized rework and ensured cost-effective repair and long-term reliability.

This project demonstrates Impes Innovation's capability to provide specialized failure analysis and reverse engineering services for critical process equipment in the pharmaceutical industry.

Project Snapshot

Client

Penicillin General Integrated Industrial Company (FZC) LLC

Location

Oman

Business Segment

Life Sciences / Pharmaceutical Industry – Heat Transfer Equipment

Key Services

Reverse Engineering, FEA, Root Cause Analysis, Mechanical Design Review

KEY HIGHLIGHTS

Project Highlights & Achievements

FEA

Based Analysis

Root Cause

Identified

Reverse

Engineering

Cost-Effective

Solution

OUR SCOPE

Services Provided

Reverse Engineering

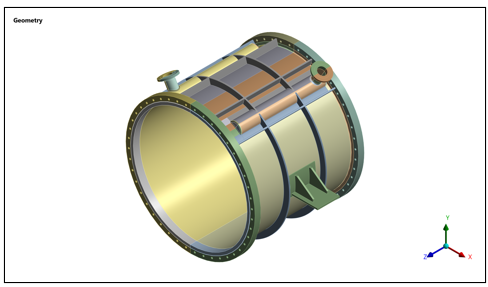

Equipment Geometry Recreation
Design Parameter Extraction
Legacy Documentation Reconstruction

Finite Element Analysis

Stress Distribution Analysis
Structural Behavior Study
Critical Stress Zone Identification

Root Cause Analysis

Failure Investigation
Mechanical Failure Evaluation
Design Limitation Assessment

Design Optimization

Design Modifications
Improvement Measures
Cost-Effective Repair Solutions

PROJECT HIGHLIGHTS

Key Project Features

Advanced FEA Analysis

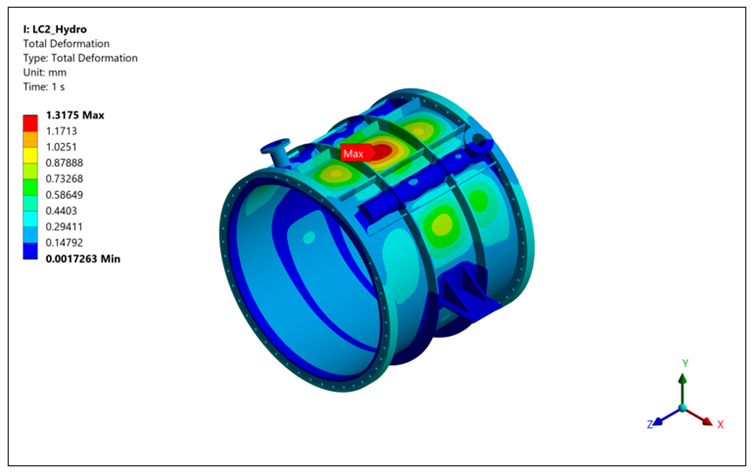

Stress distribution and structural behavior study

Reverse Engineering

Recreation of design parameters without legacy documentation

Cost-Effective Solutions

Minimal rework and rapid implementation

Key Features

Detailed reverse engineering of existing heat exchanger equipment
Advanced FEA-based structural analysis to determine failure causes

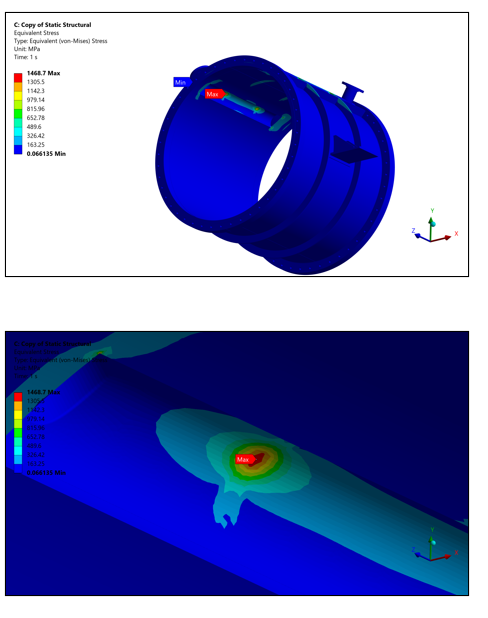

Identification of critical stress zones and design limitations
Development of engineering modifications requiring minimal rework
Cost-effective solution approach ensuring reliable equipment operation

Engineering Challenges

Understanding the original design limitations without complete legacy design documentation
Performing accurate reverse engineering of complex spiral heat exchanger geometry
Identifying the root cause of failure under operational process conditions
Proposing solutions that minimize shutdown time and repair cost

Our Strategy

Application of advanced FEA tools for failure investigation and structural validation
Detailed study of operating conditions, loading scenarios, and structural behavior
Implementation of reverse engineering techniques to recreate design parameters
Focus on cost-effective design improvements and rapid implementation
